Many student are usually afraid of designing PCB on its own it may be either due to working issue of designed PCB or they are unaware of how its done so what ever be the problem after reading this post u will be confident of at least trying it for once you just need to have a correct circuit diagram.Guys it is very easy than u think.The most important in PCB designing is to convert the circuit diagram into layout.So the easiest software to do so is the PCB wizard.However PCB wizard usually come with the live wire but some time it has to download and install separately.also keep in mind that live wire and PCB are the two different software,PCB wizard usually use in converting the live wire circuit into layout so it is a separately designing software which work in sink with the live wire.It is the most easiest way to convert the circuit diagram into layout,so the procedure to do is very simple.Now lets move to the procedure that need to be followed to convert using live wire and PCB wizard.

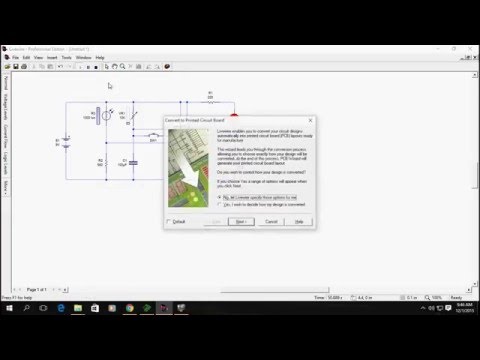

First u need to have pre-installed live wire and PCB wizard on your PC,If not installed then first install and after installing run the live wire software first,then draw the circuit on the live wire.After that check whether your circuit is working properly or not by clicking on the run button which present on the task bar of software or just press the F9 button it is the short cut command of live wire software.If circuit is working as per you plan,then go to the tool bar and in that u will be seeing the option such as simulation and design.Now click on the design but before moving to design make sure that you have opened PCB wizard on your PC then u can move to the design as explain above.after clicking on the design you will see a window click OK on that window after doing that it takes some time to design and automatically window will be displayed on which your circuit layout will be present.Hence that what you needed.
You can watch the video to know how its done.
To know more about live wire software u can read my post on PCB designing software u will get the details of the software and also the link for downloading the live wire and PCB wizard software in the same post and also there are many other post which will help u to develop you designing skills.Do check them out.
